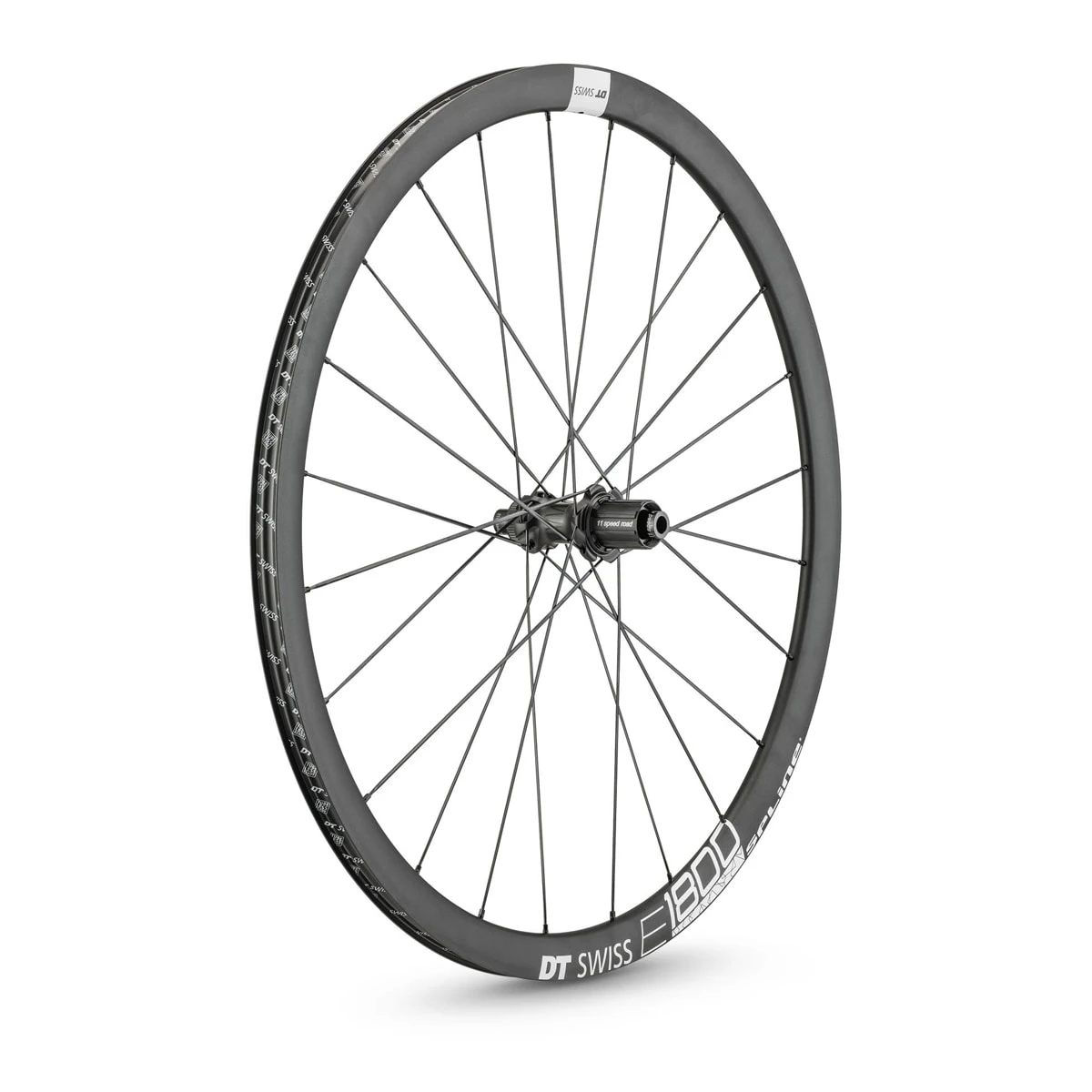

Dt-swiss E 1800 Spline® DB 32 Road Rear Wheel 28″/700C SHIMANO HG

The E 1800 Spline® DB 32 rear wheel is your all-round carefree package for daily use!
Through road traffic on the way to work or in the evening during training sessions in hilly landscapes off the main road. This endurance wheel is made for long hours of battling the challenges of the route. The solid system wheel combines aerodynamics, comfort and reliability and lets you brave even the most adverse weather and road conditions. Thanks to disc brakes and tubeless compatibility, you can also ride safely off the main roads to fully exploit the potential of your racer. Because endurance means pursuing a goal, no matter what conditions await you on the journey there.
This is exactly what the DT Swiss E 1800 Spline® disc brake wheel was developed for. The wide aluminium rim with a height of 32 mm, which rotate around the Spline hub on high-quality aero spokes, result in a wheel that runs smoothly and reliably. Combined with the proven DT Swiss 3-pawl freewheel system, which ensures reliable acceleration and efficient power transfer, you are perfectly equipped for the everyday challenges of commuting and long distances overland.

Technologies:
• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss Tubeless Ready Tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, it is mandatory to use a compatible sealant. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Through years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

• PRO LOCK®:
DT Pro Lock® prevents the spoke-nipple connection from loosening. In the Pro Lock® process, a special dual component adhesive is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and then hardens completely within a few hours. Re-truing the wheel is possible, yet it will cause a slight decrease in the adhesive power each time.

Technical details:
Rim:
• Rim material: aluminium
• Rim type: clincher (symmetrical)
• Brake type: disc brake
• Rim depth: 32 mm
• Rim width: 24 mm
• Inner rim width: 20 mm
• ETRTO: 622 – 20
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Recommended tyre width: 1.1″ – 1.35″ (28 – 34 mm)

Spokes and nipples:
• Spoke type: DT aero comp® wide straightpull (left), DT new aero® straightpull (right)
• Number of spokes: 24 pcs
• Spoke pattern: 2-cross
• Nipples: DT Swiss Pro Lock® Squorx ProHead alu

• Hub body:
• 370, Spline®, 4 sealed cartridge bearings
• For disc brakes
• Aluminium freehub and body
• CenterLock brake rotor mount (IS 6-bolt with adapter, prod. code: 2283716)
• 3-pawl freehub system
• Front hub spacing: 12 x 142 mm (thru axle)

Cassette compatibility:
• Compatible with 7/8/9/10/11 speed Shimano/SRAM

Weight:
• Weight: approx. 970 g
• ASTM classification: 2 (suitable for use on and off the road and for drops of up to 15 cm)
• Max. system weight: 130 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss E 1800 Spline® DB 32 rear wheel SHIMANO HG
• 1 DT Swiss Tubeless Ready rim tape 23 mm (fitted)
• 1 DT Swiss tubeless valve 40 mm
