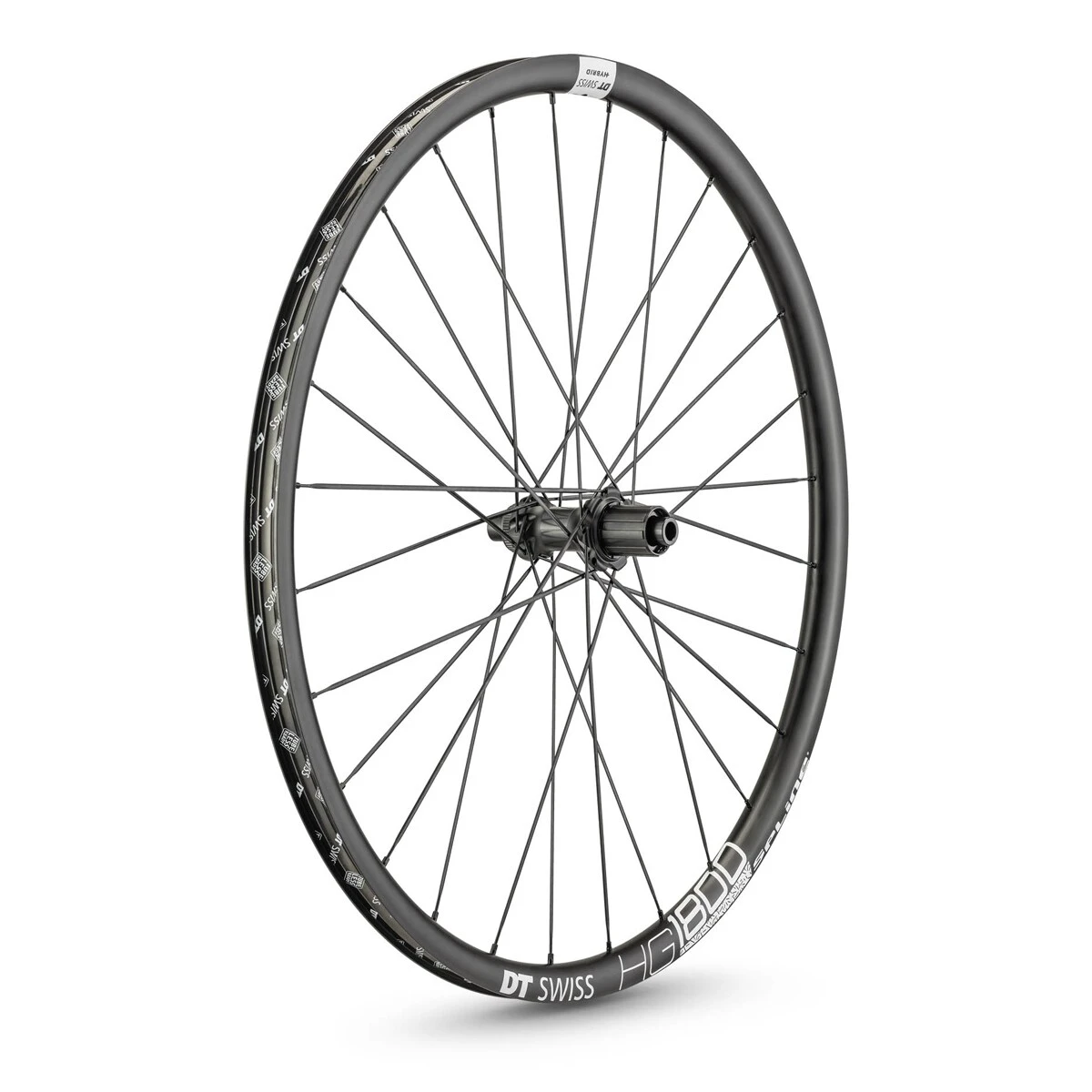

Dt-swiss HG 1800 Spline® DB 25 ROAD BOOST Hybrid E-Gravel Rear Wheel 28″/700C SHIMANO HG

Experience the ultimate freedom of hybrid gravelling!
The HG 1800 Spline® DB 25 Hybrid Gravel rear wheel with Road BOOST standard is a performance upgrade and the ideal entry into the world of high-quality electric road and gravel system wheels.
What has long been the norm in the trekking and city sector as well as road cycling is now also conquering fields and forest paths: Bike riding with electronic assistance!

But when you’re riding rough gravel trails, you’ll need solid wheel equipment that is designed for the higher total weight and increased stress on the material. The reliable E-specific components of the HG 1800 System wheel from DT Swiss is made for dusty gravel tracks and cross-country trails. The 370 Spline® Road BOOST hub for disc brakes has industrial bearings and is connected with 28 reinforced spokes to the solid aluminium rim. The rear wheel is very agile on the road and can handle quite a lot off-road. If you fit wide tyres, you can ride with increased traction, grip and comfort. A matching tyre on the Cyclocrosser works as a tubeless system, providing more puncture protection.

The HG 1800 Spline® 25 wheel combines Swiss precision with tailor-made hybrid technology for fast adventure trips into the countryside. What are you waiting for?

Technologies:

• ROAD BOOST:
With the ROAD BOOST standard, the distance between the hub flanges is increased to improve stiffness and stability with a flatter spoke angle. This reduces the stress on the material by improving symmetry, which in turn greater durability. DT Swiss prefers the Road Boost standard for use on e-road bikes. With high loads from the driver and engine assistance, it better compensates for torsional forces and improves steering characteristics under load.

• TUBELESS:
All DT Swiss wheels are tubeless ready. The profiles of the DT Swiss rims are specially designed for tubeless use. The rim profile makes it easier to fit the right tyre and ensures a perfect fit. The tubeless system of the rim consists of DT Swiss Tubeless Ready Tape for sealing and a DT Swiss tubeless valve in a length that complies with the rim. When using tubeless ready tyres, it is mandatory to use a compatible sealant. However, it is also possible to use a conventional combination of tyre and inner tube.

• BEARINGS:
Thanks to years of experience, DT Swiss only uses durable cartridge bearings without bearing play adjustment. DT Swiss hubs are designed to have the optimum axial and radial bearing play when they are properly installed. The correct preload of the bearings to compensate for the clamping force of the wheel mounting system is the basis for a play-free hub with minimum friction.

• PRO LOCK®:
DT Pro Lock® prevents the spoke-nipple connection from loosening. In the Pro Lock® process, a special dual component adhesive is injected into the nipple thread, allowing for extremely durable wheel builds. By threading the nipple onto the spoke the adhesive is activated and then hardens completely within a few hours. Re-truing the wheel is possible, yet it will cause a slight decrease in the adhesive power each time.

Technical details:

Rim:
• Rim material: aluminium
• Rim type: clincher (symmetrical)
• Brake type: disc brake
• Rim depth: 25 mm
• Rim width: 28 mm
• Inner rim width: 24 mm
• ETRTO: 622 – 24
• For Presta valve (Ø 6.5 mm)
• Tubeless ready
• Recommended tyre width: 1.35″ – 2.2″ (34 – 56 mm)

Spokes and nipples:
• Spoke type: DT aero comp® hybrid straightpull (left), DT new aero® hybrid straightpull (right)
• Number of spokes: 28 pieces
• Lacing: 3-cross
• Nipples: DT Swiss Pro Lock® Squorx ProHead alu

• Hub body:
• 370, Spline®, 4 sealed cartridge bearings
• For disc brakes
• Aluminium freehub and body
• CenterLock brake rotor mount (IS 6-bolt with adapter, prod. code: 2283716)
• 3-pawl freehub system
• Front hub spacing: 12 x 148 mm (ROAD BOOST thru axle)

Cassette compatibility:
• Compatible with 7/8/9/10/11 speed Shimano/SRAM

Weight:
• Weight: approx. 1125 g
• ASTM classification: 2 (suitable for use on and off the road and for drops of up to 15 cm)
• Max. system weight: 140 kg (cyclist, bike, gear and luggage)

In the box:
• 1 DT Swiss HG 1800 SPLINE® DB 25 rear wheel ROAD BOOST SHIMANO HG
• 1 DT Swiss Tubeless Ready rim tape 27 mm
• 1 DT Swiss tubeless valve 32 mm
